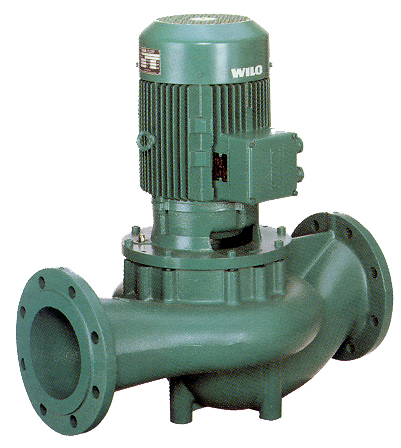

Pompe de chauffage
Wilo IPN
Disponible sous 3/4 jours
Présentation
• Pompe centrifuge monocellulaire à rotor sec dans une forme de construction Inline pour installation en ligne ou disposition dans des fondations (à partir d'un diamètre de roue de 180)
Conception
• Type de construction compacte silencieuse et sans vibrations via un moteur à courant triphasé directement fixé par bride, arbre non divisé avec douille de protection d'arbre et scellement spécial résistant à la pression. Avec garniture mécanique d'étanchéité à soufflet à déviation forcée, indépendante du sens de rotation, et roue réduisant la cavitation
• Bride avec raccords dynamométriques R 1/8
• À partir de 11 kW en puissance de commande avec protection moteur totale grâce à des capteurs de température à thermistor
• Carter : EN-GJL-250
• Arbre : X 20 Cr 13 (1.4021)
• Roue : EN-GJL-250
• Garniture mécanique d'étanchéité : AQ1EGG (Standard)
• Manchon protecteur arbre : G-CuSn 5
Caractéristiques techniques
• Pression de service : 16 bars max
• Nature du courant : 3~400V/50Hz
• Puissance nominale du moteur : 18,5 kW
• Vitesse nominale : 1450 1/min
• Intensité nominale : 36 A
• Type de protection : IP 55
• Bride de tuyauterie : DN 125/PN16
• Hauteur max (HMT) : 80 m
• Débit max : 1000 m3/h
Voir plus de détails
Versions disponibles
IPn 40/125–0,55/4 (120909396)
/
IPn 40/160–0,55/4 (120909499)
/
IPn 40/200–0,75/4 (120909591)
/
IPn 40/224–1,1/4 (120922490)
/
IPn 40/250–1,5/4 (120909694)
/
IPn 50/125–0,55/4 (120910494)
/
IPn 50/160–0,55/4 (120910597)
/
IPn 50/200–1,1/4 (120910792)
/
IPn 50/224–1,5/4 (120922993)
/
IPn 50/250–2,2/4 (120910895)
/
IPn 65/125–0,55/4 (120886290)
/
IPn 65/160–0,75/4 (120884898)
/
IPn 65/180–1,5/4 (120911591)
/
IPn 65/200–2,2/4 (120911694)
/
IPn 65/224–3/4 (120923093)
/
IPn 65/250–4/4 (120911890)
/
IPn 80/125–0,55/4 (120882498)
/
IPn 80/160–1,1/4 (120882097)
/
IPn 80/180–2,2/4 (120912195)
/
IPn 80/200–3/4 (120912298)
/
IPn 80/224–4/4 (120912390)
/
IPn 80/250–5,5/4 (120912493)
/
IPn 100/160–1,1/4 (120912596)
/
IPn 100/180–2.2/4 (120912699)
/
IPn 100/200–3/4 (120912791)
/
IPn 100/224–4/4 (120912894)
/
IPn 100/250–5,5/4 (120912997)
/
IPn 100/280–7,5/4 (121814391)
/
IPn 100/280–11/4 (121814299)
/
IPn 100/300–11/4 (121814196)
/
IPn 100/300–15/4 (121814093)
/
IPn 100/315–11/4 (121813993)
/
IPn 100/315–15/4 (121813890)
/
IPn 100/335–15/4 (121813798)
/
IPn 100/335–18,5/4 (121813695)
/
IPn 100/360–18,5/4 (121862096)
/
IPn 100/360–22/4 (121813592)
/
IPn 100/360–30/4 (120813490)
/
IPn 125/160–1,5/4 (121346698)
/
IPn 125/180–3/4 (120913190)
/
IPn 125/200–4/4 (120913292)
/
IPn 125/224–5,5/4 (120913395)
/
IPn 125/250–7,5/4 (120913498)
/
IPn 125/280–11/4 (121815396)
/
IPn 125/280–15/4 (121815293)
/
IPn 125/300–15/4 (121815190)
/
IPn 125/300–18,5/4 (121815098)
/
IPn 125/315–18,5/4 (121814998)
/
IPn 125/315–22/4 (121814895)
/
IPn 125/335–22/4 (121814792)
/
IPn 125/335–30/4 (121814690)
/
IPn 125/360–22/4 (121814597)
/
IPn 125/360–30/4 (121814494)
/
IPn 150/180–5,5/4 (120913590)
/
IPn 150/200–5,5/4 (120913693)
/
IPn 150/224–7,5/4 (120913796)
/
IPn 150/250–11/4 (120913899)
/
IPn 150/280–15/4 (121816390)
/
IPn 150/280–18,5/4 (121816298)
/
IPn 150/300–18,5/4 (121815195)
/
IPn 150/300–22/4 (121816092)
/
IPn 150/315–22/4 (121815992)
/
IPn 150/315–30/4 (121815890)
/
IPn 150/335–22/4 (121815797)
/
IPn 150/335–30/4 (121815694)
/
IPn 150/360–30/4 (121815591)
/
IPn 150/360–37/4 (121815499)
/
IPn 200/224–11/4 (121865696)
/
IPn 200/250–18,5/4 (121865891)
/
IPn 40/125–1,1/2 (120909797)
/
IPn 40/140–1,5/2 (120909890)
/
IPn 40/160–2,2/2 (120909992)
/
IPn 40/180–4/2 (120922890)
/
IPn 40/180–5,5/2 (120922798)
/
IPn 40/200–5,5/2 (120910196)
/
IPn 40/200–7,5/2 (120922695)
/
IPn 40/224–9/2 (120910299)
/
IPn 40/224–11/2 (120922592)
/
IPn 50/125–1,5/2 (120910998)
/
IPn 50/140–2,2/2 (120911098)
/
IPn 50/160–3/2 (120911190)
/
IPn 50/180–5,5/2 (120911200)
/
IPn 50/180–7,5/2 (120911293)
/
IPn 50/200–9/2 (120911210)
/
IPn 50/200–11/2 (120911396)
/
IPn 50/224–11/2 (120911295)
/
IPn 50/224–15/2 (120911499)
/
IPn 65/125–2,2/2 (120897199)
/
IPn 65/140–3/2 (120897096)
/
IPn 65/150–4/2 (IPN-65-150–4-2-)
/
IPn 65/160–5,5/2 (120884189)
/
IPn 65/180–9/2 (120911992)
/
IPn 65/200–11/2 (120912092)
/
IPn 80/125–3/2 (120897590)
/
IPn 80/140–4/2 (120897497)
/
IPn 80/160–7,5/2 (120882292)
/
IPn 100/160–7,5/2 (120913100)
/
IPn 100/160–9/2 (IPN-100-160–9-2-)
/
IPN 100/125 4/2 (120913098)
/
IPN 100/140 7,5/2 (120913099)
/
IPN 100/160 1,1/4 (120912596)
/
IPN 100/160 7,5/2 (120913100)
/
IPN 100/180 2,2/4 (120912699)
/
IPN 100/200 3/4 (120912791)
/
IPN 100/224 4/4 (120912894)
/
IPN 100/250 5,5/4 (120912997)
/
IPN 100/280 11/4 (121814299)
/
IPN 100/280 7,5/4 (121814391)
/
IPN 100/300 11/4 (121814196)
/
IPN 100/300 15/4 (121814093)
/
IPN 100/315 11/4 (121813993)
/
IPN 100/315 15/4 (121813890)
/
IPN 100/335 15/4 (121813798)
/
IPN 100/335 18,5/4 (121813695)
/
IPN 100/360 18,5/4 (121862096)
/
IPN 100/360 22/4 (121813592)
/
IPN 100/360 30/4 (120813490)
/
IPN 125/160 1,5/4 (121346698)
/
IPN 125/180 3/4 (120913190)
/
IPN 125/200 4/4 (120913292)
/
IPN 125/224 5,5/4 (120913395)
/
IPN 125/250 7,5/4 (120913498)
/
IPN 125/280 11/4 (121815396)
/
IPN 125/280 15/4 (121815293)
/
IPN 125/300 15/4 (121815190)
/
IPN 125/300 18,5/4 (121815098)
/
IPN 125/315 18,5/4 (121814998)
/
IPN 125/315 22/4 (121814895)
/
IPN 125/335 22/4 (121814792)
/
IPN 125/335 30/4 (121814690)
/
IPN 125/360 22/4 (121814597)
/
IPN 125/360 30/4 (121814494)
/
IPN 150/180 5,5/4 (120913590)
/
IPN 150/200 5,5/4 (120913693)
/
IPN 150/224 7,5/4 (120913796)
/
IPN 150/250 11/4 (120913899)
/
IPN 150/280 15/4 (121816390)
/
IPN 150/280 18,5/4 (121816298)
/
IPN 150/300 18,5/4 (121815195)
/
IPN 150/300 22/4 (121816092)
/
IPN 150/315 22/4 (121815992)
/
IPN 150/315 30/4 (121815890)
/
IPN 150/335 22/4 (121815797)
/
IPN 150/335 30/4 (121815694)
/
IPN 150/360 30/4 (121815591)
/
IPN 150/360 37/4 (121815499)
/
IPN 200/224 11/4 (121865696)
/
IPN 200/250 18,5/4 (121865891)
/
IPN 40/125 0,55/4 (120909396)
/
IPN 40/125 1,1/2 (120909797)
/
IPN 40/140 1,5/2 (120909890)
/
IPN 40/160 0,55/4 (120909499)
/
IPN 40/160 2,2/2 (120909992)
/
IPN 40/180 4/2 (120922890)
/
IPN 40/180 5,5/2 (120922798)
/
IPN 40/200 0,75/4 (120909591)
/
IPN 40/200 5,5/2 (120910196)
/
IPN 40/200 7,5/2 (120922695)
/
IPN 40/224 1,1/4 (120922490)
/
IPN 40/224 11/2 (120922592)
/
IPN 40/224 9/2 (120910299)
/
IPN 40/250 1,5/4 (120909694)
/
IPN 50/125 0,55/4 (120910494)
/
IPN 50/125 1,5/2 (120910998)
/
IPN 50/140 2,2/2 (120911098)
/
IPN 50/160 0,55/4 (120910597)
/
IPN 50/160 3/2 (120911190)
/
IPN 50/180 5,5/2 (120911200)
/
IPN 50/180 7,5/2 (120911293)
/
IPN 50/200 1,1/4 (120910792)
/
IPN 50/200 11/2 (120911396)
/
IPN 50/200 9/2 (120911210)
/
IPN 50/224 1,5/4 (120922993)
/
IPN 50/224 11/2 (120911295)
/
IPN 50/224 15/2 (120911499)
/
IPN 50/250 2,2/4 (120910895)
/
IPN 65/125 0,55/4 (120886290)
/
IPN 65/125 2,2/2 (120897199)
/
IPN 65/140 3/2 (120897096)
/
IPN 65/160 0,75/4 (120884898)
/
IPN 65/160 5,5/2 (120884189)
/
IPN 65/180 1,5/4 (120911591)
/
IPN 65/180 9/2 (120911992)
/
IPN 65/200 11/2 (120912092)
/
IPN 65/200 2,2/4 (120911694)
/
IPN 65/224 3/4 (120923093)
/
IPN 65/250 4/4 (120911890)
/
IPN 80/125 0,55/4 (120882498)
/
IPN 80/125 3/2 (120897590)
/
IPN 80/140 4/2 (120897497)
/
IPN 80/160 1,1/4 (120882097)
/
IPN 80/160 7,5/2 (120882292)
/
IPN 80/180 2,2/4 (120912195)
/
IPN 80/200 3/4 (120912298)
/
IPN 80/224 4/4 (120912390)
/
IPN 80/250 5,5/4 (120912493)
/
IPN 50/250–2,2/4 (120910895)
/
IPN 65/224–3/4 47 (120923093)
/
IPN 80/200–3/4 50 (120912298)
/
IPN 80/224–4/4 50 (120912390)
/
IPN 100/300–15/40 (121814093)
/
IPN 100/335–18,5/4 (121813695)
/
IPN 125/360–30/4 (121814494)
/
IPN 150/360–37/4 (121815499)
/
IPN 200/250–18,5/4 (121865891)
/
IPN 40/224–11/2 (120922592)
/
IPN 65/200–11/2 (120912092)
